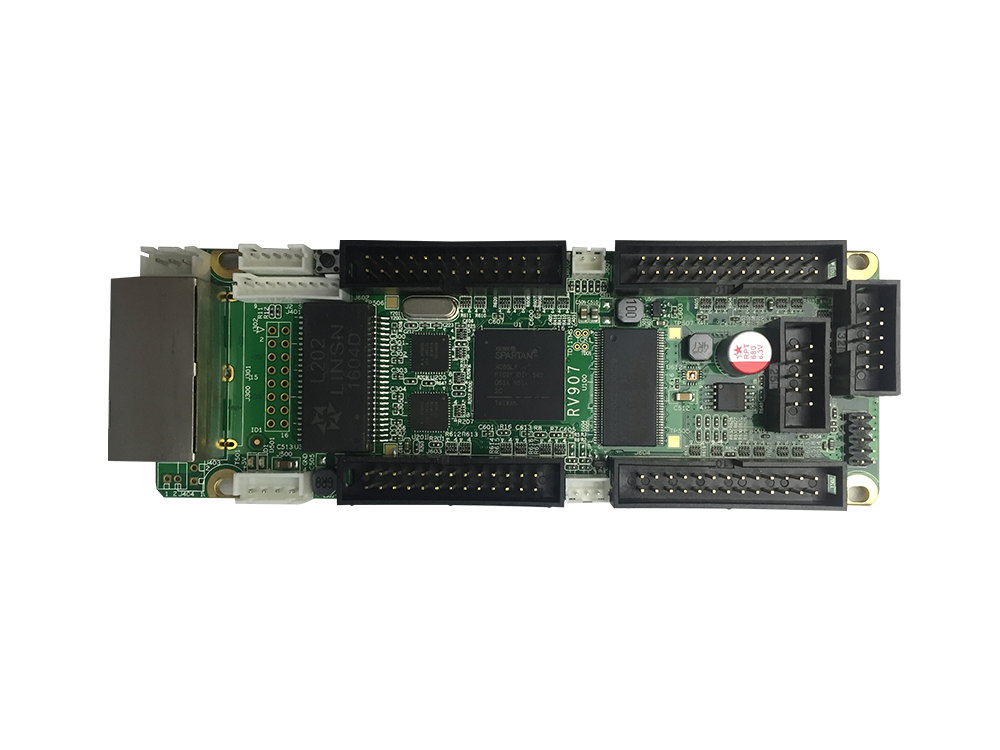

L202 Linsn RV907A LED Display Receiving Card

Technical Specifications

1. Output Capabilities

• Configurable modes:

  • 16x RGBR' outputs (enhanced color accuracy)

  • 20x/24x RGB outputs (standard display compatibility)

  • 32x serial data outputs (for extended LED strips)

• Max Pixels Supported: 1024×256 (262,144 pixels per card)

2. Environmental Monitoring

• Power Supply: VCC pins per port for direct unit board power connection.

• Multi-Sensor Support:

  • Temperature monitoring

  • Humidity detection (external module required)

  • Smoke detection (external module required)

  • Voltage detection: 3 channels (1 for card, 2 for external devices)

3. Display Enhancement

• Pixel-by-pixel brightness correction

• On-card Chromaticity Space Conversion (CSC)

• High refresh rate & high grayscale (16-bit+) for mainstream ICs

4. Reliability & Compliance

• Dual-card hot backup for fail-safe operation

• Network cable BER (Bit Error Rate) testing

• Certifications: EU RoHs, CE-EMC Class B
