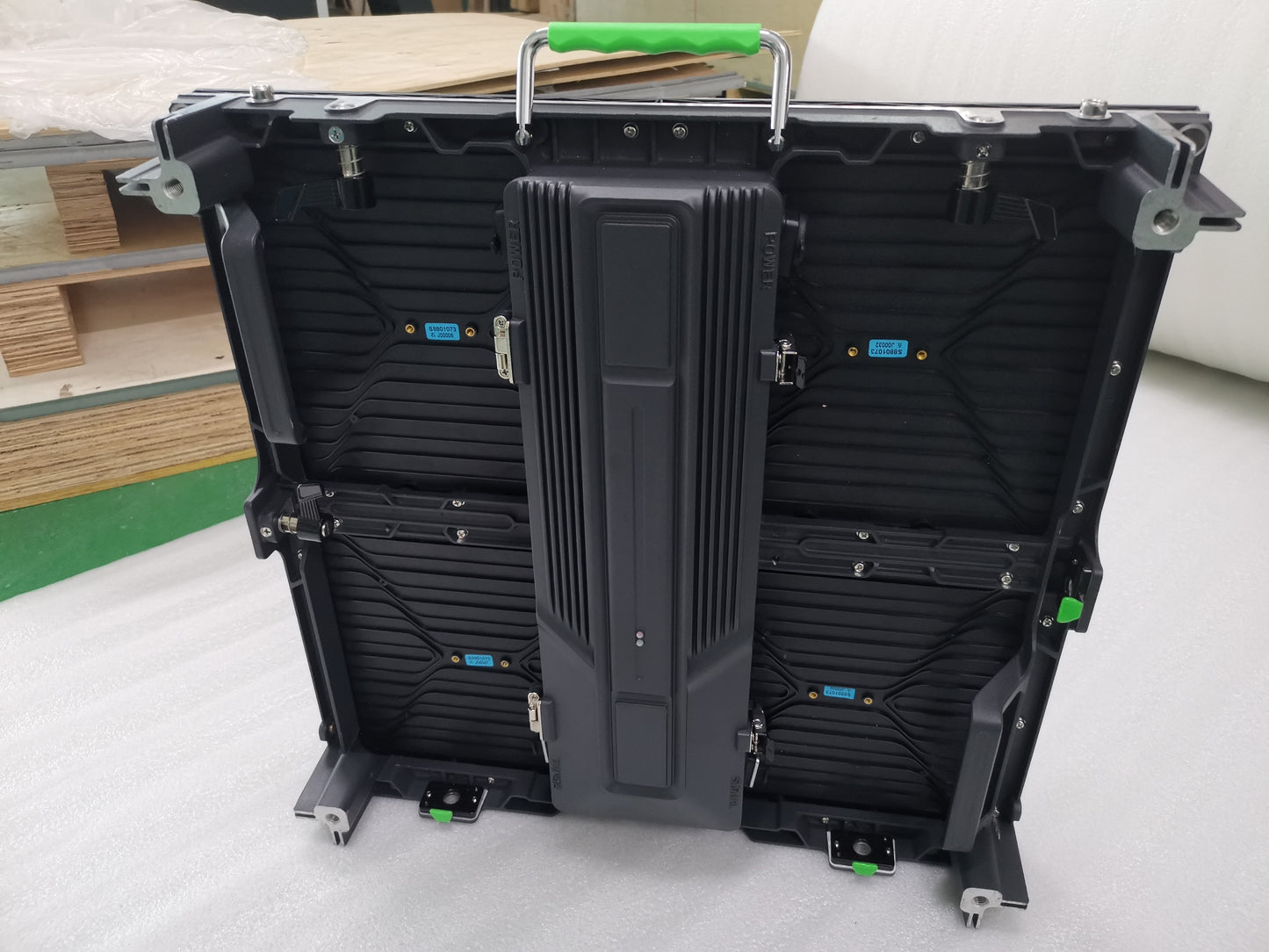

LED Video Wall Outdoor 8.2′ x 5′ P3.91mm Turn-key

TECHNICAL SPECIFICATIONS
KEY FEATURES:
Turn-key solution
Easy installation
Ground support compatible (sold separately here)
Download full specifications here
Technical support available
3-year warranty included for all parts

PACKAGE INCLUDES:
(15)  P3.91mm Outdoor LED video tiles
(1) Video Processor with HDMI, DVI and VGA Inputs
(5) Hanging bars for rigging
(12)  Power cable
(12)  Signal cable
(2) Flight case
Spare parts included

CONTROL SYSTEM:
Control Mode: NovaStar Synchronous System with Control via DVI
Frame Update Frequency: 50-60Hz
Refresh Rate: 3840Hz
Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Brightness Correction: Pixel, Module, Cabinet

SPECS:
Pixel Pitch: 3.91mm
LED Configuration: 3-in-1 SMD1921 LEDs
Pixel Density: 128 x 128 per panel
Size:19.68” x 19.68” x 3” / 500 x 500 x 75mm
Module Quantity: 4 per panel
Module Size：250 x 250mm
Weight: 18lbs. / 8.16Kg

OPTICAL RATINGS:
Brightness: 4500--5000 NITS
View Angle: Horizontal 140°/Vertical 140°
Distance: 15ft (4.5m)
Brightness Adjustment: 0~100% 100 Levels

ENVIRONMENTAL:
Operating Life: 100,000 Hours
Protection Level: IP65 (Front and Back)

POWER SUPPLY:
Operation Power: 100~240V 50-60Hz
Max. Power Consumption: 400W/per panel
Ave. Power Consumption: 200W/per panel

Unleash Creativity for Any Event
Concerts & Festivals: Design jaw-dropping stage backdrops that move with the music.
DJ Sets: Elevate your mix with reactive visuals that dance to your tracks.
Immersive Installations: Transform galleries, pop-up events, or retail spaces into interactive worlds.
Corporate Events: Command attention with sleek, curved displays for product launches or keynote speeches.

Ready to Revolutionize Your Space?

[Contact us today] to explore custom configurations or see the panels in action.
