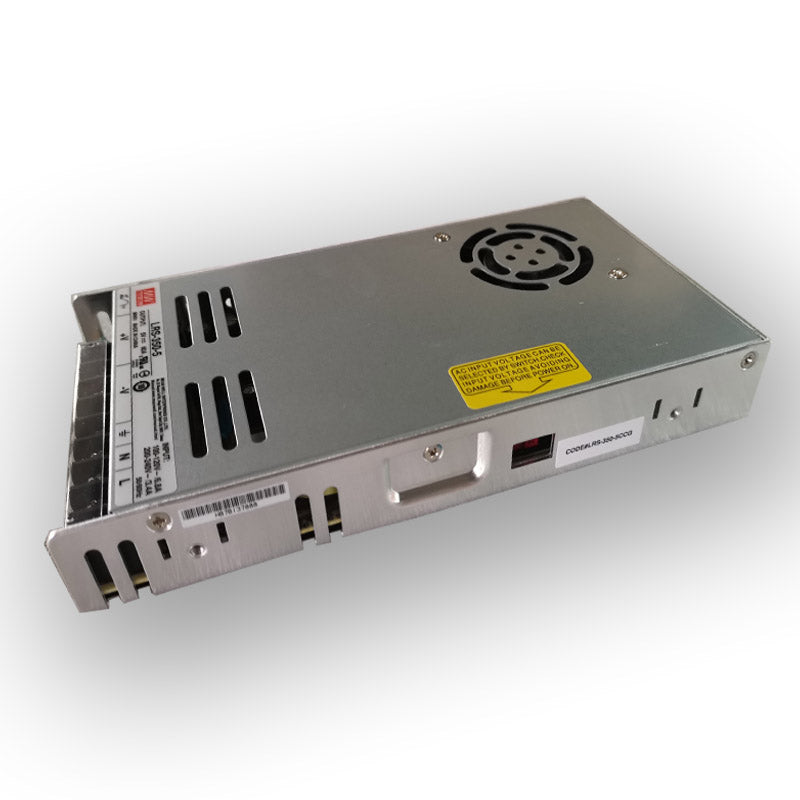

MEANWELL LRS-350-5 5V 60A Switching Power Supply

Specifications

OUTPUT

    DC VOLTAGE   5V
    RATED CURRENT  60 A
    CURRENT RANGE  0 ~ 60A
    RATED POWER  300W
    RIPPLE & NOISE (max.)  150mVp-p
    VOLTAGE ADJ. RANGE 4.5 ~ 5.5V
    VOLTAGE TOLERANCE   ±3.0%
    LINE REGULATION ±0.5%
    LOAD REGULATION ±2.0%
    SETUP, RISE TIME  1300ms, 50ms/230VAC     1300ms,50ms/115VAC at full load
    HOLD UP TIME (Typ.)   16ms/230VAC      12ms/115VAC at full load

INPUT

    VOLTAGE RANGE  90 ~ 132VAC / 180 ~ 264VAC by switch                                  240 ~ 370VDC (switch on 230VAC)
    FREQUENCY RANGE   47 ~ 63Hz
    EFFICIENCY (Typ.)   83.5%
    AC CURRENT (Typ.)   6.8A/115VAC   3.4A/230VAC
     INRUSH CURRENT (Typ.) COLD START   60A/115VAC     60A/230VAC
    LEAKAGE CURRENT    <2mA / 240VAC
