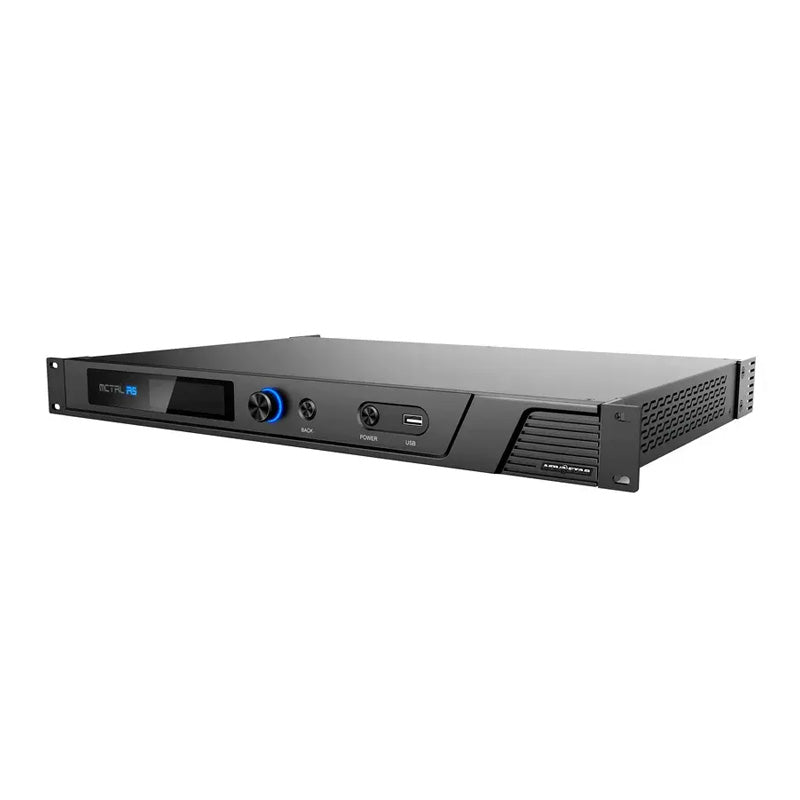

NovaStar MCTRL R5 LED display controller

NovaStar MCTRL R5 is the first LED display controller of NovaStar that supports image rotation. A single MCTRL R5 features a load capacity of up to 3840×1080@60Hz. It supports any custom resolutions within this capacity, meeting the on-site configuration requirements of ultra-long or ultra-wide LED displays.

Working with the A8s or A10s Plus receiving card, the MCTRL R5 allows for free screen configuration and image rotation at any angle in SmartLCT, presenting a variety of images and bringing an amazing visual experience to users.

The MCTRL R5 is stable, reliable and powerful, dedicated to providing an ultimate visual experience. It can be mainly used in the rental and fixed installation applications, such as concerts, live events, security monitoring centers,

Games and various sports centers.

Key Features

• A variety of input connectors − 1x 6G-SDI − 1x HDMI 1.4 − 1x DL-DVI
• 8x Gigabit Ethernet outputs and 2x optical outputs
• Image rotation at any angle Work with the A8s or A10s Plus receiving card and SmartLCT to support image rotation at any angle.
• Support for 8-bit and 10-bit video sources
• Pixel level brightness and chroma calibration Work with the high-precision calibration system to perform brightness and chroma calibration on each LED to effectively remove brightness differences and chroma differences, enabling high brightness consistency and chroma consistency.
• Firmware update via USB port on the front panel
• Up to 8 devices can be cascaded.

Certifications: FCC, RoHS, UL&CUL, CE, CB, IC
