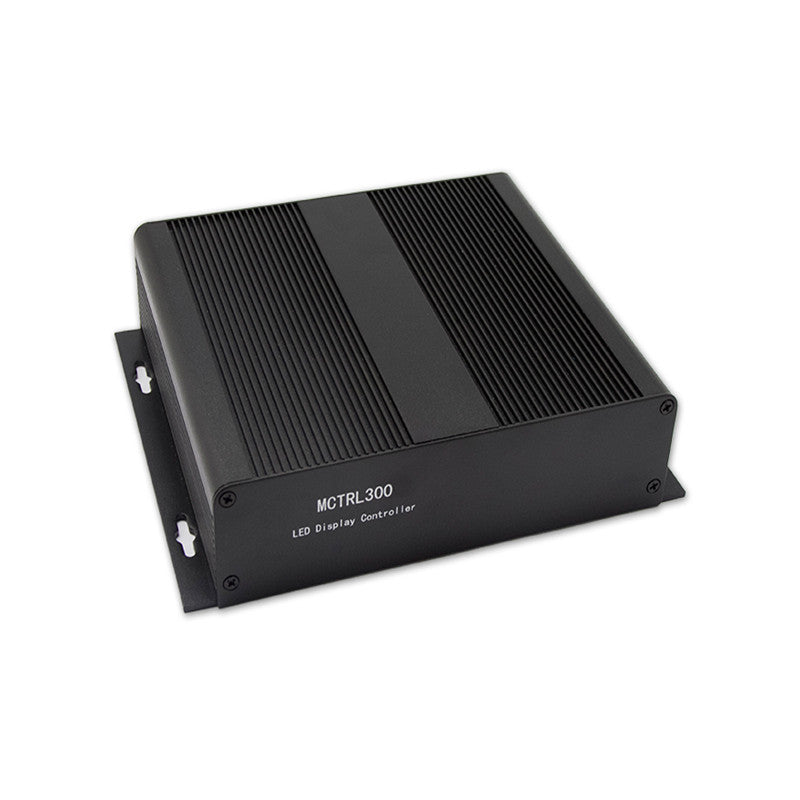

Novastar MCTRL300 LED display Controller

Product Name: Novastar MCTRL300 LED Controller

Key Features:

• Video Input: Supports DVI video input

• Audio Transmission: Supports audio transmission

• Output: Dual network port output, supports dual network cable hot backup and multi-main control hot backup

• Control Interface: Communicates with computer via USB interface, supports cascading multiple units for unified control

• Load Capacity: Supports 1.3 million pixels, load resolutions include 1280x1024@60Hz, 1024x1200@60Hz, 1600x848@60Hz, 1920x712@60Hz, 2048x668@60Hz, and other custom resolutions

• Resolution Support: Maximum horizontal resolution up to 3840 pixels; maximum vertical resolution up to 3840 pixels

• Brightness Adjustment: One optical sensor interface, supports adaptive screen brightness adjustment

• Power Supply: Independent power supply
