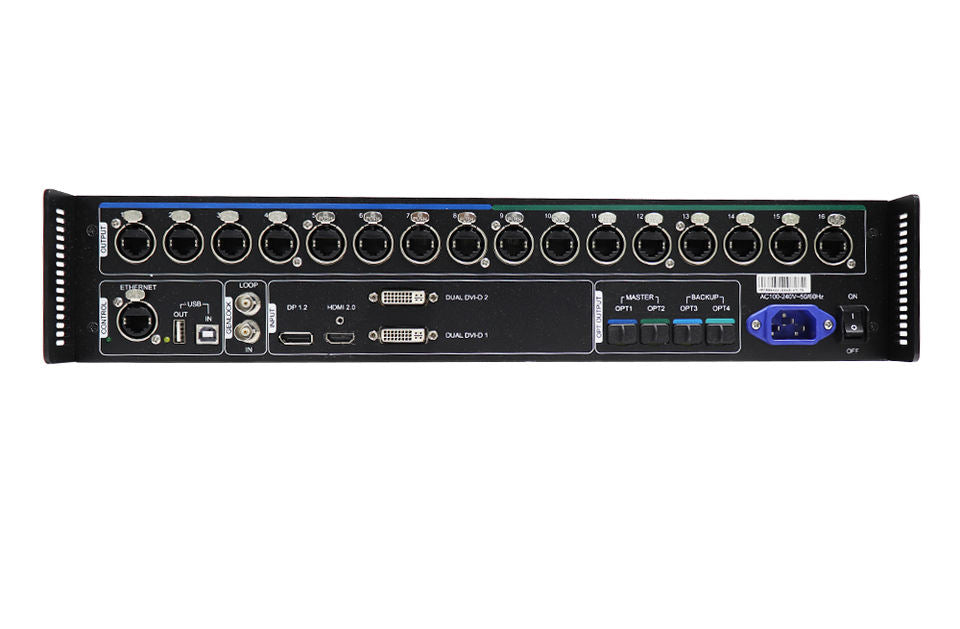

NovaStar MCTRL4K LED display controller

NovaStar MCTRL4K is an LED display controller with an ultra-large loading capacity. A single unit features a loading capacity of up to 4096×2160@60Hz. It supports any custom resolutions with a width or height up to 7680 pixels, meeting the on-site configuration requirements of ultra-long or ultra-wide LED displays. It comes with many industry-leading technologies such as HDR, individual gamma adjustment for RGB, low latency, 3D, and pixel level brightness and chroma calibration. These technologies improve the display brightness, grayscale and color performance, presenting more uniform, detailed and vivid images. The MCTRL4K is stable, reliable and powerful, dedicated to providing users with an ultimate visual experience. It can be mainly used in the rental and fixed installation applications, such as concerts, live events, security monitoring, Olympic Games, various sports centers, and much more.

Key Features

• A variety of input connectors
  • 1x DP 1.2
  • 1x HDMI 2.0
  • 2x DL-DVI
• 16 Neutrik Gigabit Ethernet ports and 4 optical ports. For DP/HDMI input, the maximum loading capacity is 8,800,000 pixels. For DVI input, the maximum loading capacity is 8,300,000 pixels. The maximum output height or width of a single MCTRL4K is 7680 pixels.
• High bit-depth inputs: 8bit/10bit/12bit
• HDR function HDR10 and HLG are supported. The MCTRL4K can work with the receiving cards that support HDR to greatly enhance the image quality of the display, presenting more vivid and detailed images.
• 3D The MCTRL4K can work with the 3D emitter EMT200 and 3D glasses, allowing you to experience 3D display effects.
• Individual gamma adjustment for RGB. For 10-bit or 12-bit inputs, this function can individually adjust the red gamma, green gamma and blue gamma to effectively control image nonuniformity in low grayscale conditions and white balance offset, allowing for a more realistic image.
• RGB limited to RGB full. This function automatically converts the color range of the input source from RGB limited to RGB full so as to display natural black in low grayscale conditions.
• Low latency. When low latency and input source sync are enabled, and cabinets are connected vertically, the delay between the input source and receiving card can be reduced to one frame.
• Inputs with decimal frame rates. Adaptive to 23.98/29.97/47.95/59.94/71.93/119.88 Hz  Pixel level brightness and chroma calibration The MCTRL4K can work with NovaStar’s highprecision calibration system to calibrate the brightness and chroma of each pixel, effectively removing brightness differences and chroma differences, enabling high brightness consistency and chroma consistency.
• Ultra-high resolution input Supports ultra-high resolution settings with NVIDIA graphics card.
• Screen configuration on web
• Cascading of up to 10 MCTRL4K units

Certifications: FCC, CE, UL&CUL, EAC, CB, IC, KC, RCM
