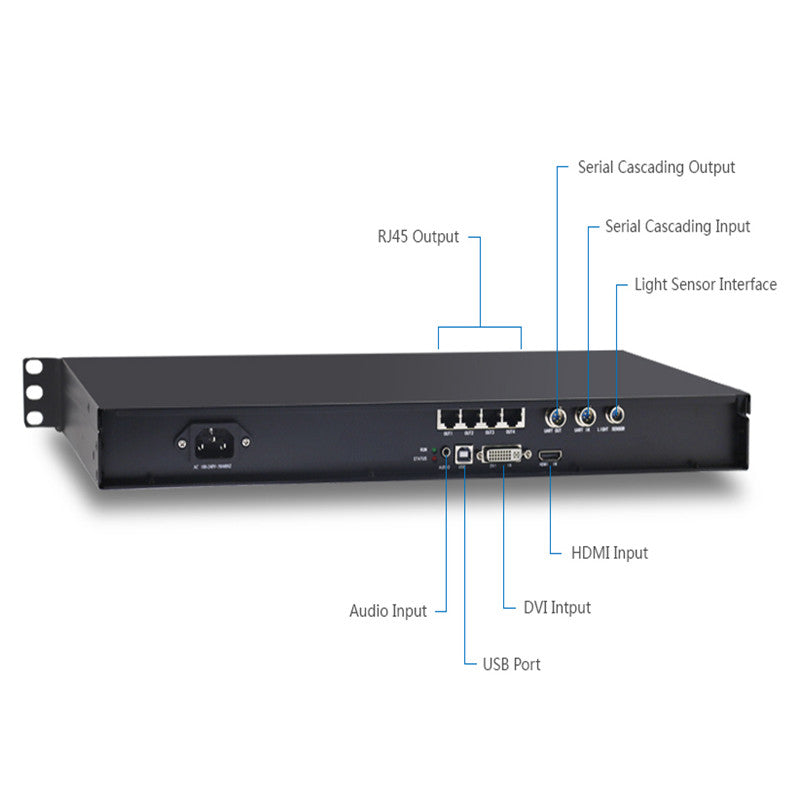

NovaStar MCTRL600 LED video processor LED display controller

Product Name: Novastar MCTRL600 LED Display Controller
Model: MCTRL600
Maximum Load Capacity: Single device supports up to 1920x1200@60Hz
Cascading Function: Multiple devices can be cascaded via UART interface for unified control
Main Application Fields: Rental and fixed installation fields, such as live broadcast events, stadiums, and sports centers

Key Features:

• Video Input: 12bit / 10bit HDMI video input, DVI video input

• Audio Input: HDMI audio input/external audio input

• HDCP Support: Direct access to Blu-ray sources

• 8bit Video Source Load Capacity: 1920x1200@60Hz

• 12bit High-bit Video Source Load Capacity: 1440x900@60Hz

• Custom Resolution Settings: Horizontal resolution up to 3840 pixels, vertical resolution up to 3840 pixels

• Multi-device Cascading: Multiple devices can be cascaded for unified control

• Supported Video Formats: RGB, YCrCb4:2:2/ YCrCb4:4:4

• Certifications: CE, RoHS, FCC, EAC, IC
