NovaStar MCTRL660 Pro led display panel controller led display screen controller

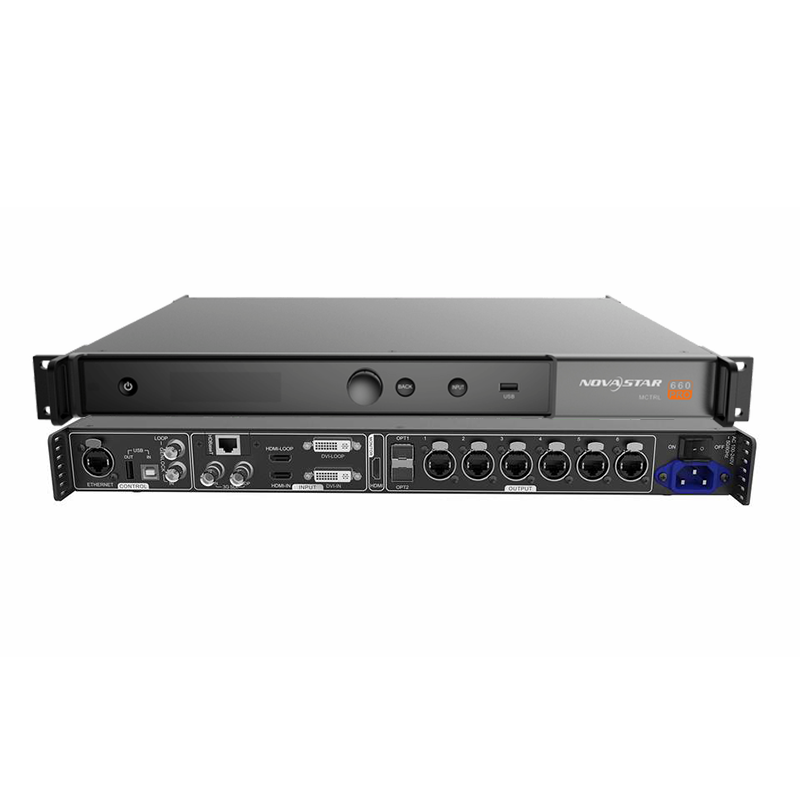

NovaStar MCTRL660 Pro

The MCTRL660 Pro is a professional low-latency LED controller. A single unit can handle up to 1920×1200@60Hz resolution. The MCTRL660 Pro is equipped with numerous market-leading technologies. With the various video inputs such as HDMI, DVI, 3G-SDI and six Gigabit Ethernet and two 10G optical outputs, you can configure extra large displays with excess width or height.

Inputs:

• 1x HDMI (In/Loop): 8Bit: 1920×1200@60Hz; 10/12Bit: 1920×1080@60Hz
• 1x 3G-SDI (In/Loop)
• 1x Single-Link DVI

Outputs:

• 6x LED-Out (RJ45)
• 2x 10G OPT-Out
