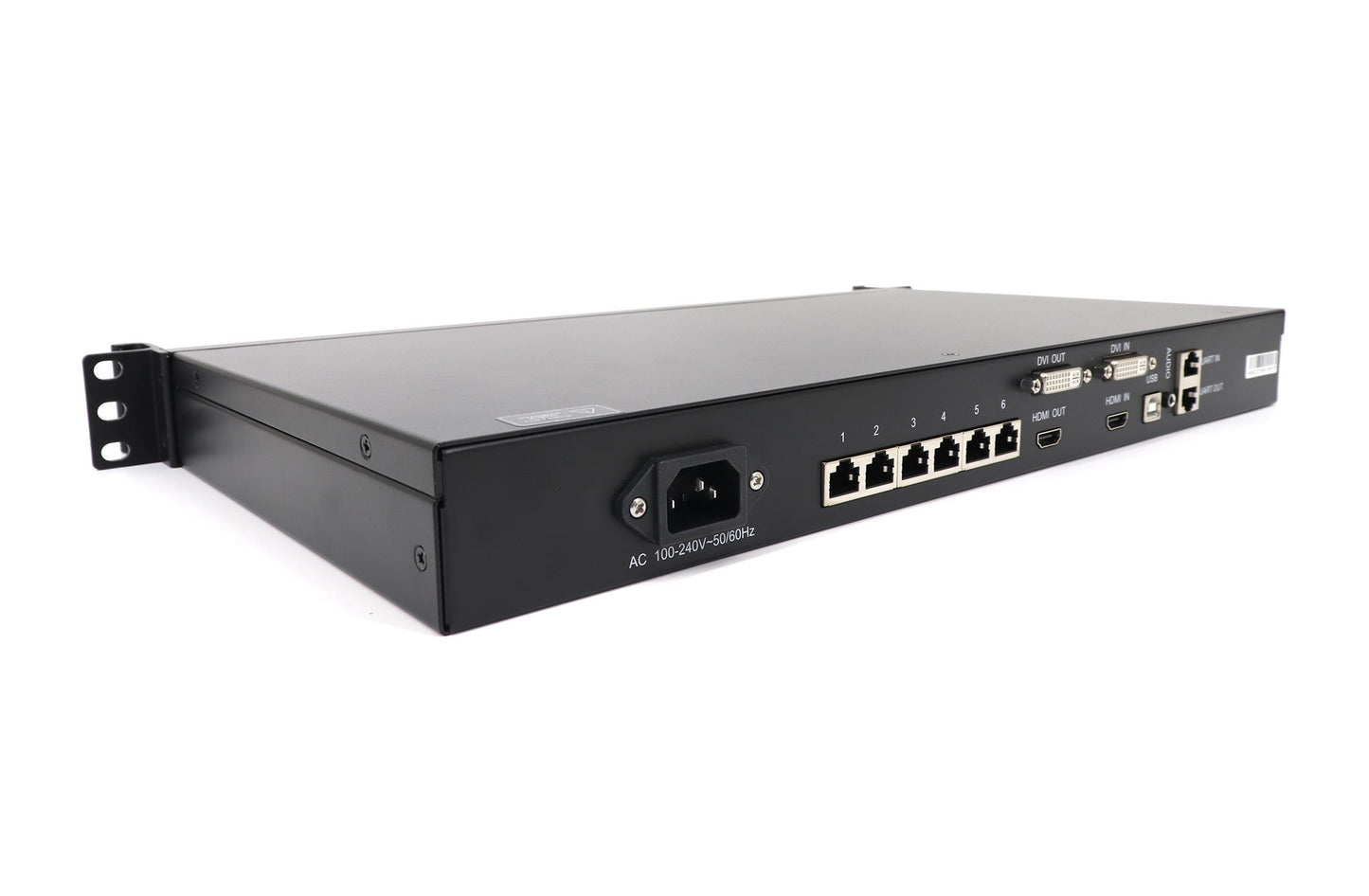

NovaStar MCTRL700 LED video processor LED display controller

Product Overview
The Novastar MCTRL700 is a high-performance LED display controller designed for both rental and fixed installation applications. It is widely used in large-scale events such as concerts, live broadcast events, Olympic Games, stadiums, and sports centers, providing exceptional video and audio control capabilities.

Key Features

• Communication Interface: Communicates with the PC via a square USB port and supports device cascading through UART serial ports.

• Video Input: Supports 1 DVI video source input and 1 HDMI video source input.

• Audio Input: Supports 1 AUDIO input.

• Network Output: Supports 6 Gigabit Ethernet outputs, with a maximum load capacity of 1920x1200@60Hz per device.

• Control Interface: Supports 1 square USB control port and 2 UART control ports, with a maximum cascading support of 20 devices.

• Calibration Function: Supports pixel-by-pixel brightness and chroma calibration. When used with NovaLCT and NovaCLB software, it corrects the brightness and chroma of each LED point, effectively eliminating color differences and ensuring highly uniform brightness and chroma across the entire screen, significantly improving display quality.

Technical Specifications

• Input Interfaces:

  • 1*SL-DVI(IN-OUT)

  • 1*HDMI13(IN-OUT)

  • 1*AUDIO

• Output Interfaces: 6 Gigabit Ethernet outputs

• Control Interfaces: 1 square USB control port, 2 UART control ports

• Maximum Load Resolution: 1920x1200@60Hz

• Cascading Support: Supports cascading up to 20 devices

Software Support

• NovaLCT

• NovaCLB
