Product Overview

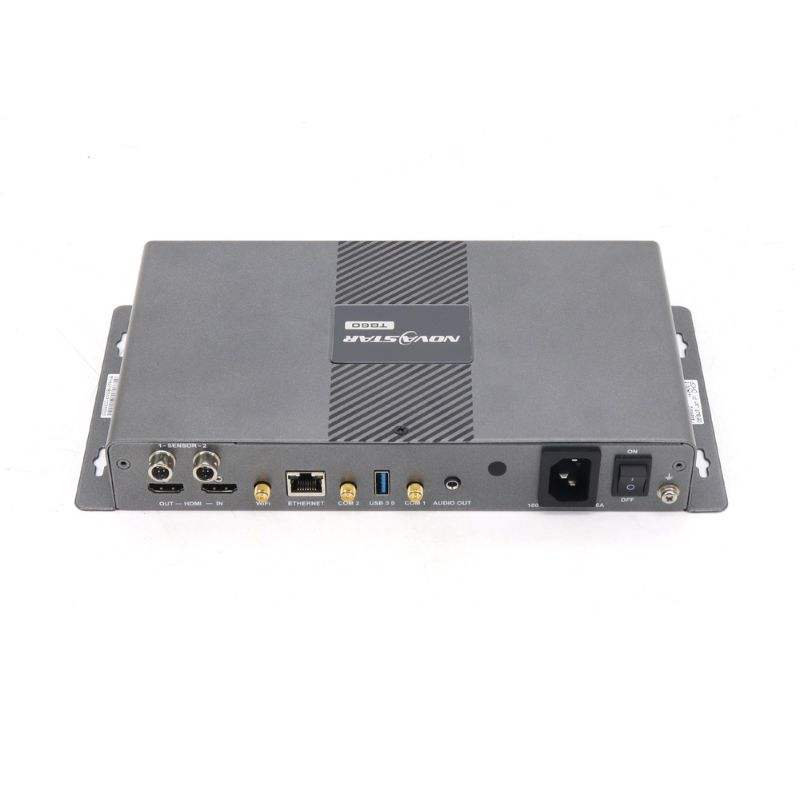

The NovaStar TB60 is a high-performance LED display controller designed for commercial displays and professional AV scenarios. It supports multiple signal inputs and real-time control, compatible with mainstream video formats, delivering stable and smooth visual performance.
Product Name: NovaStar TB60 Controller
Model: TB60
|
Name
|
Description
|
|
SENSOR
|
Sensor connectors
Connect to brightness sensors or temperature and humidity sensors.
|
|
WiFi
|
Wi-Fi antenna connector (2.4 GHz Wi-Fi supported)
Support for switching between Wi-Fi AP and Wi-Fi Sta
|
|
USB3.0
|
USB 3.0 (Type A) port Allows for USB playback, firmware upgrade and storage expansion. The Ext4 and FAT32 file systems are
supported. The maximum size of a single file supported by FAT32 is 4 GB. The exFAT and FAT16 file systems are not supported. |
|
ETHERNET
|
Gigabit Ethernet port
Connects to the control computer, a LAN or public network for content publishing and screen control.
|
|
COM 2
|
GPS antenna connector
|
|
AUDIO OUT
|
Audio output connector ,OMTP headphones can be connected.
|
|
100-240V~, 50/60Hz, 0.6A
|
Power input connector
|
|
COM 1
|
4G antenna connector
|
|
ON/OFF
|
Power switch
|
|
HDMI
|
1x HDMI 1.3 OUT
Support for HDMI loop
Maximum output resolution: The pixel clock cannot exceed 153 MHz.
Maximum output:1920×1200@60Hz
HDCP 1.4 compliant
No support for interlaced signal output
In asynchronous mode, output resolutions support 400×4096@60Hz and 480×4096@60Hz.
Support for custom resolutions:
− Custom pixel width range: 512~4096
(512×512@60Hz~4096×560@60Hz) − Custom pixel height range: 512~3680 (512×512@60Hz~512×3680@60Hz) |
|
|
1x HDMI 1.3 IN
Maximum input resolution: The pixel clock cannot exceed 153 MHz.
Maximum input: 1920×1200@60Hz
HDCP 1.4 compliant
No support for interlaced signal input
Support for custom resolutions:
Custom pixel width range: 512~4096 (512×512@60Hz~4096×560@60Hz)
Custom pixel height range: 512~3680 (512×512@60Hz~512×3680@60Hz)
Note: The resolution of HDMI IN can be customized by changing the preset EDID, so the external source must support custom resolutions.
In synchronous mode, HDMI is used for video input and users can enable fullscreen scaling to make the image to fit the screen automatically.
Requirements for full-screen scaling in synchronous mode:
− 512 pixels ≤ video source width ≤ 2048 pixels
− 512 pixels ≤ video source height ≤ 2048 pixels
− Maximum resolution: 1920×1080
− The image can only be scaled down and cannot be scaled up.
Note: The pixel width and height of the video source must be greater than or equal to the pixel width and height of the screen, respectively.
|
