NovaStar VX2000 Pro LED Display Controller 4K LED Video Processor

NovaStar VX2000 Pro is a cutting-edge all-in-one controller designed for seamless video processing and control. With its advanced capabilities and user-friendly design, this device is ideal for medium to high-end rental events, stage productions, and fine-pitch LED displays. Its robust construction and versatile features ensure excellent performance even in complex environments.

Key Features

• Comprehensive Video Processing

  • Supports up to 13 million pixels.
  • Maximum width: 16,384 pixels; height: 8,192 pixels.
  • 4K×2K@60Hz video input for stunning display quality.

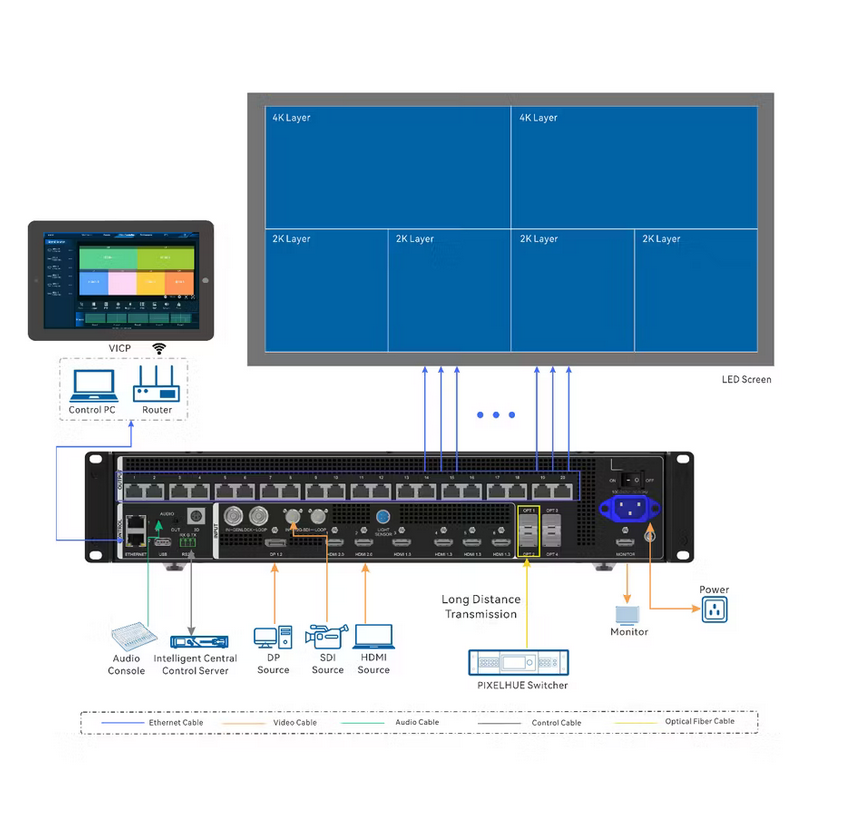

• Versatile Connectivity

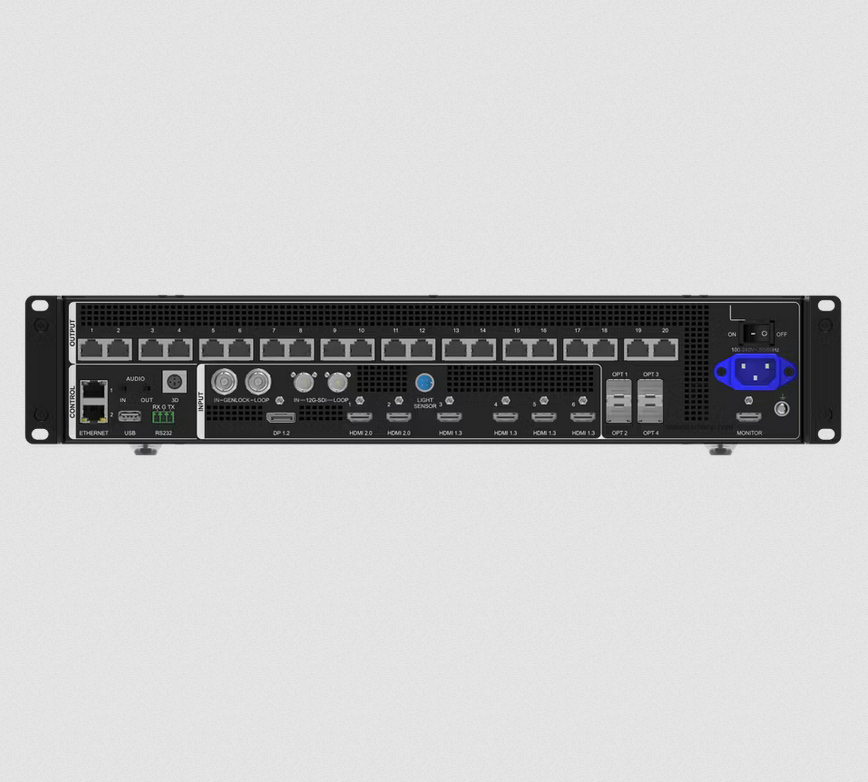

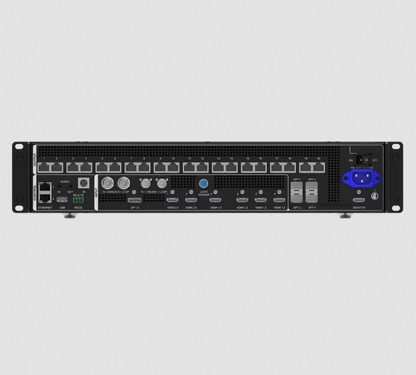

  • Input ports: 1 DP 1.2, 1 HDMI 2.0, 4 HDMI 1.3, 1 3G-SDI, and 2 optical fiber ports.
  • Output ports: 20 Gigabit Ethernet ports, 2 additional fiber outputs, and 1 HDMI monitoring port.

• Enhanced Display Flexibility

  • Support for up to 12 layers, adjustable in size, position, and priority.
  • OSD features: Text, image, weather, clock, and more.
  • 3D functionality for immersive visual effects (requires compatible 3D glasses).

• Customizable and Efficient Operations

  • Save and load up to 256 user-defined presets with one-click accessibility.
  • Pixel-level brightness and chroma calibration for color consistency.
  • Multiple image scaling modes: Full screen, pixel-to-pixel, and custom.

• Low Latency and Synchronization

  • Delay as low as <1ms with low latency mode.
  • External or internal Genlock ensures synchronized outputs for all connected units.

• Multiple Operating Modes

  • Operates as a video controller, fiber converter, or in Bypass mode.

• User-Friendly Control Options

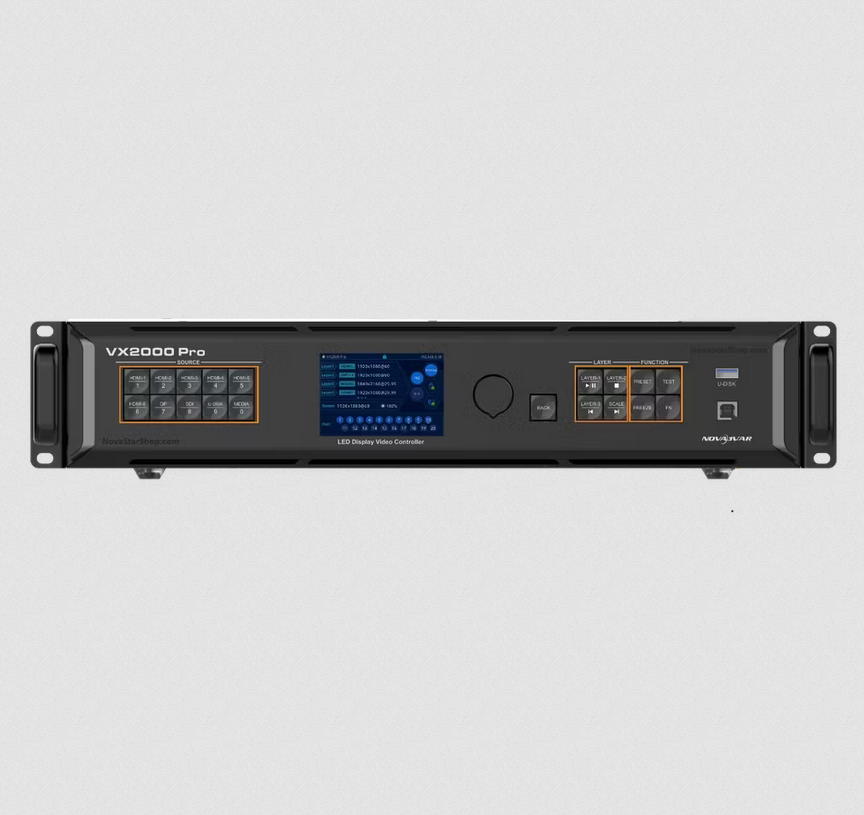

  • Manage via front panel, NovaLCT, Unico, VICP app, or remote control.

• Durable and Portable Design

  • Industrial-grade casing and compact dimensions (482.6mm × 409.0mm × 94.6mm) with a net weight of 7 kg.

• Backup and Recovery

  • End-to-end redundancy between devices, input sources, and Ethernet ports.
  • Data auto-restoration after power loss.
