PixelBright

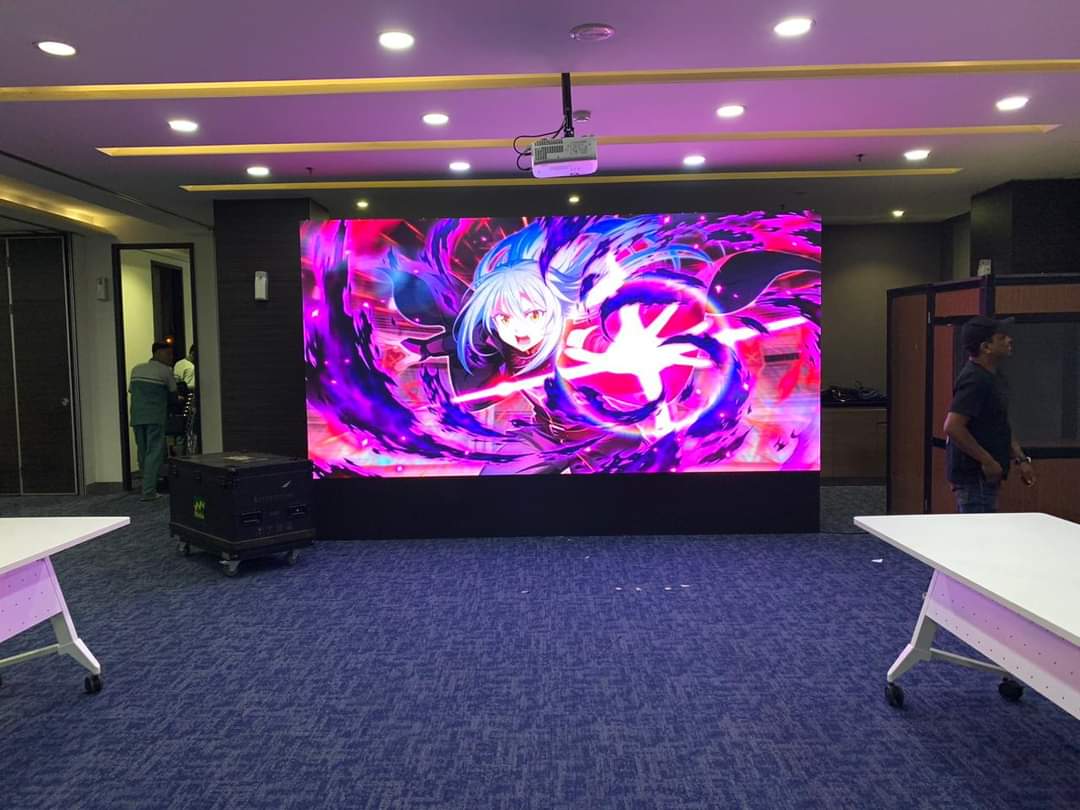

LED display screen wall panel 13'×6.56'-P4.81 Turn-key solutions-With ground support- Plug and Play
LED display screen wall panel 13'×6.56'-P4.81 Turn-key solutions-With ground support- Plug and Play
Couldn't load pickup availability
P4.81 LED display screen 13'×6.56'-Turn-key solutions-With ground support- Plug and Play
Package Includes:
- (16) P4.81 led panels （Indoor & outdoor options）
- (1) LED controller with HDMI,DVI inputs
- (15) Power cable
- (15) Signal cable
- (2) Plywood case
- (1) LED ground support
- Spare parts included
Technical specifications
| Pixel Pitch | 4.81mm |
| LED Configuration | SMD2121 -INDOOR / SMD1921-OUTDOOR |
| Pixel Density | 104x 208per panel |
| Screen resolution | 346,112pixels |
| Panel size | Width：500mm / 1.64ft ， Height：1000mm / 3.28ft |
| Screen size | Width：4m / 13ft ， Height：2m / 6.56ft |
| Weight | 26 lbs. /12 Kg per panel |
| Brightness | 800-900 NITS-INDOOR / 4500-5000 NITS-OUTDOOR |
| Refresh rate | 3840Hz |
| Operating Voltage | 100~240V, 50-60Hz |
| Max. Power Consumption | 400 W per panel |
| Avg. Power Consumption | 200W per panel |
| Control Mode | Controlled via HDMI,DVI |
| Frame Update Frequency | 50-60Hz |
| Supported Inputs | HDMI,DVI |
| Operating Life | 100,000 hours |
Q1: How to install?
A: Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q2: What about the warranty?
A: 3 year warranty
Q3: What about the lead time?
A:Led screen often need about 15-18 working days for us to make and test before sending to you, just according to the quantity..
Q4: This is the first time to import, I don’t know how to do.
A: We offer DDP door to door service, you just need to pay us, then wait to receive order.
