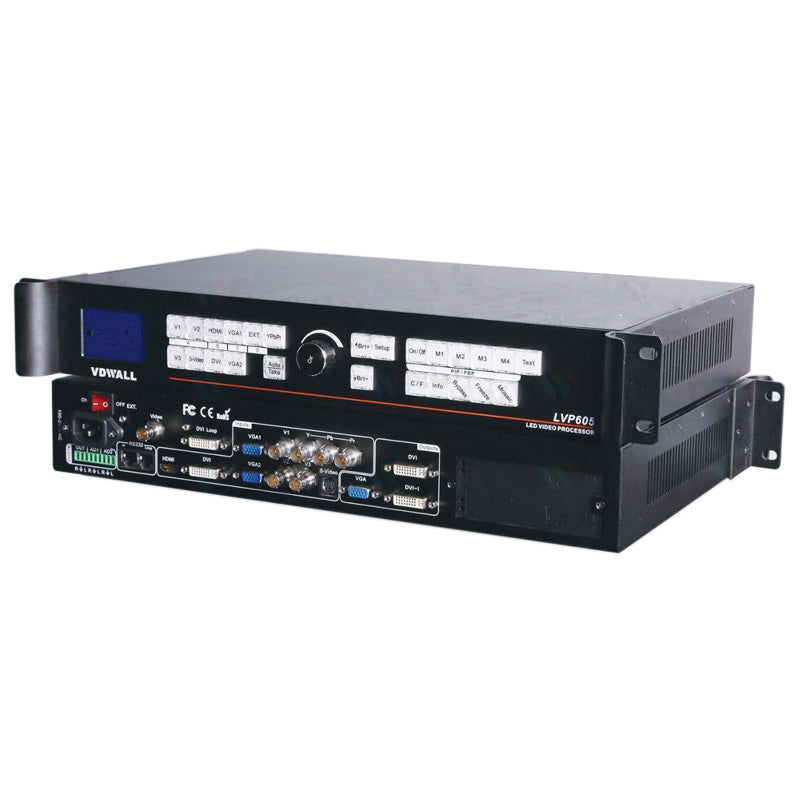

VDWALL LVP605S 2K Video Processor LED video wall controller

VDWALL LVP605S LED VIDEO Processor

1. 10+ Bit Faroudja® DCDI Cinema Processing
2. New Faroudja® Real Color®
3. Faroudja® TureLife™ Video Enhancer
4. Advanced 4×4 Pixels Interpolation Scaling Algorithm
5. HDMI 1.3a with HDCP, HD 1080p input
6. SDI. HDSDI(1080p) Input
7. 10-bit Processing
8. Seamless Switching, Fade-in / Fade-out
9. HD Text, Flash, Graphics & Logo Overlay
10. 4 custom PIP/POP display modes, which can be switched by pressing one button
11. Hot Spare function, display will be stable and reliable
12. Picture Freeze function
13. AIAO(Any In Any Out) function allows for displaying any capturing picture in specific area on the screen
14. 2304*1152 or 2560*816 output for single machine
15. Multi-machine in parallel, multi-unit installed in parallel drive indefinite LED lattice
16. Easy setup and adjustment through knob and keys on the panel. Full design RS232 command for operating and setting.
17. Press keys or knob on frontal panel to directly select 10-channel input signal source,including:
    3×CVBS 1×DVI 1×HDMI 2×VGA
    1×YPbPr/ YCbCr 1×S-VIDEO
    1×SDI/HD-SDI（extended module optional or 1×VGA/DVI/HDMI xtended module optional
18. 2 channels can be configured to connect external stereo audio, plus DVI, HDMI and SDI audio, there are 5-channel audio for synchronous switch
19. 2 LED Transmission Cards Built-in ability (sending cards are optional)
20. 24/7 Application
21. Input voltage 100-240VAC 50/60Hz
